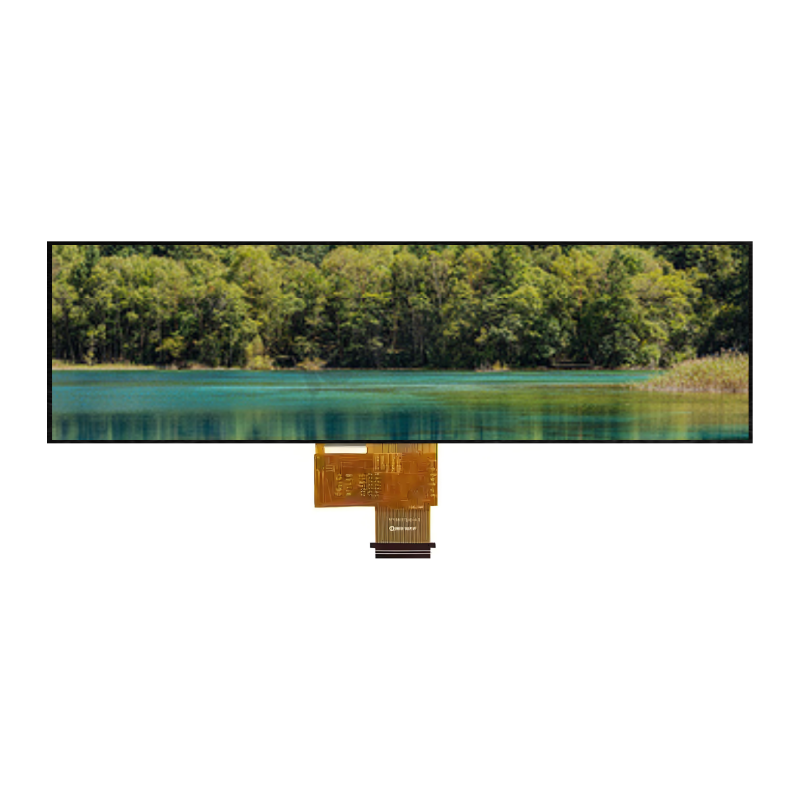

Elevate your next-generation smart devices and IoT applications with JicTech’s 3.12‑inch OLED Display Module3.12‑Inch OLED Display Module

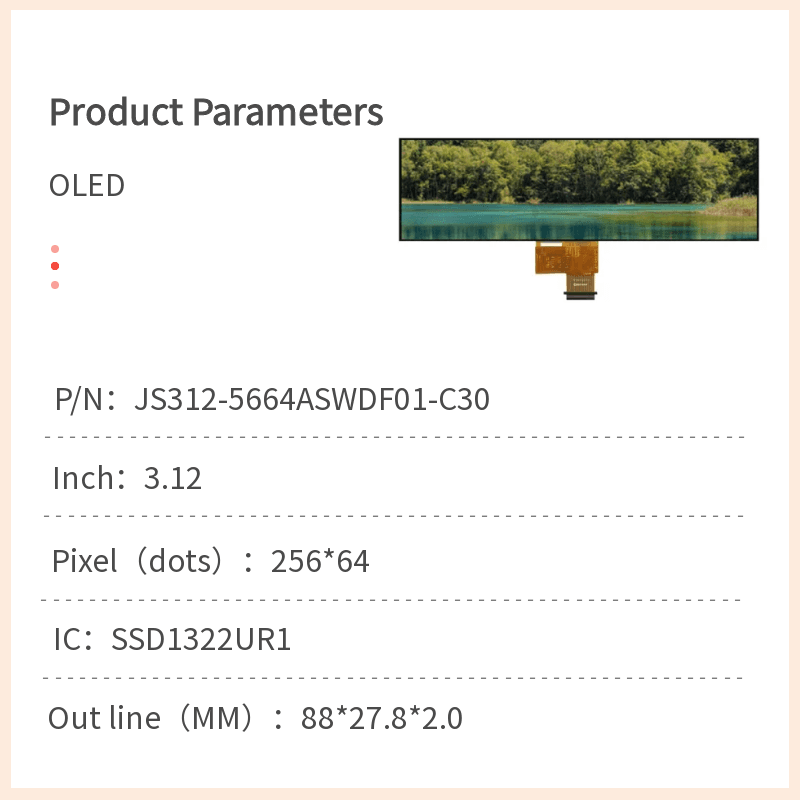

Model: JS312‑5664ASWDF01‑C30
Product Overview
Elevate your next-generation smart devices and IoT applications with JicTech’s 3.12‑inch OLED Display Module. Featuring a high‑contrast 256 × 64 pixel array driven by the SSD1322UR1 IC, this passive‑matrix OLED offers true blacks, fast response, and ultra‑wide viewing angles—all in a slim 2.0 mm profile.
Key Features
- Resolution: 256 × 64 pixels
- Display Mode: Passive Matrix OLED
- Color: Monochrome (White)
- Driver IC: SSD1322UR1
- Drive Duty: 1/64
- Self‑Emissive: No backlight required for deep blacks and low power draw
- Viewing Angle: ~170° (no color shift)
Mechanical Specifications
| Specification | Details |
|---|---|
| Panel Size | 88 × 27.8 × 2.0 mm |
| Active Area | 84.48 × 21.12 mm |
| Pixel Pitch | 0.33 × 0.33 mm |
| Pixel Size | 0.30 × 0.30 mm |

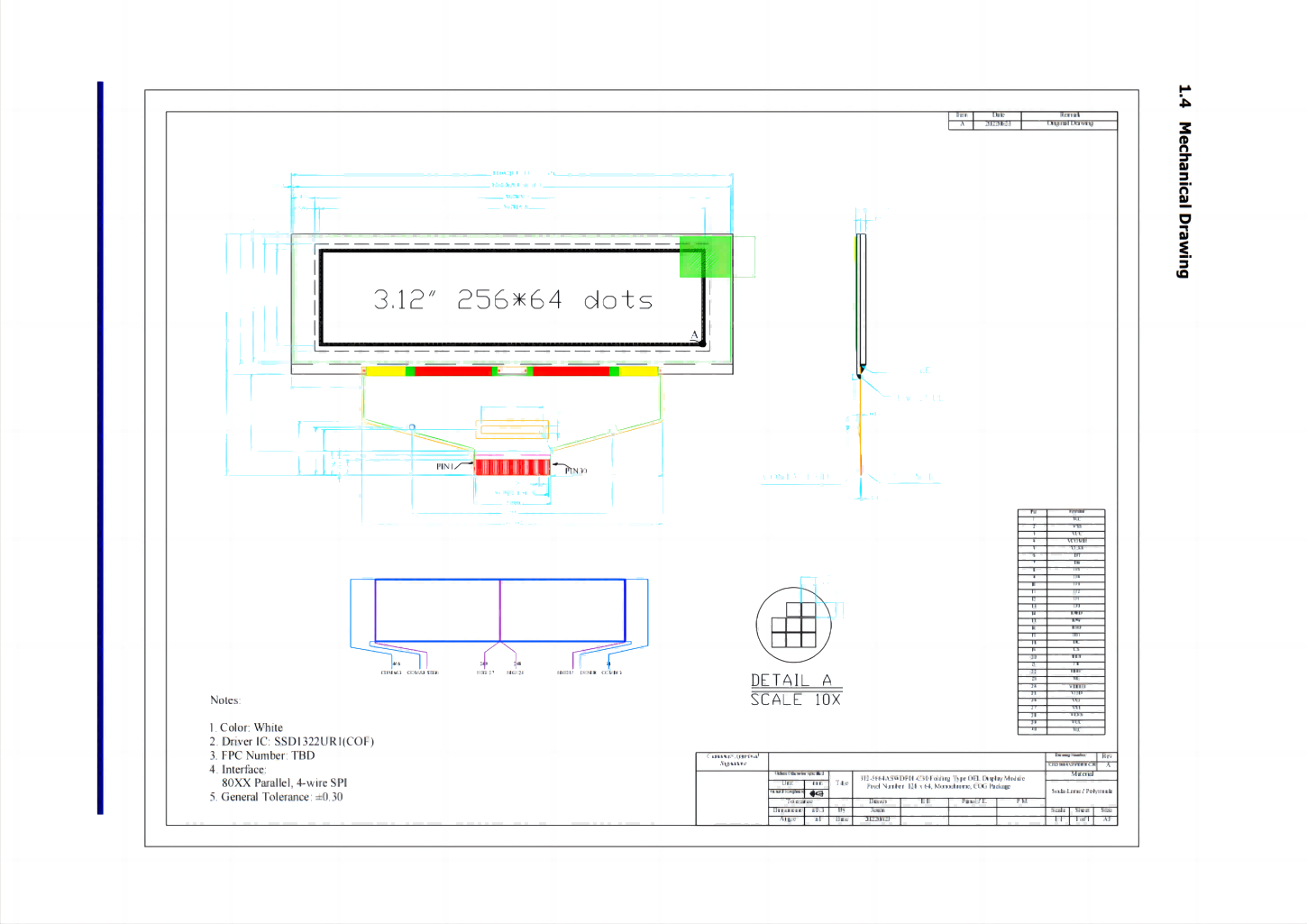

| Outline Drawing | See annexed outline drawing |
| Weight | TBD |
Display Advantages
- High Contrast & Clarity: Self‑emissive white pixels on true‑black background
- Fast Response: Ideal for dynamic icons and text updates
- Ultra‑Slim Profile: 2 mm thickness integrates seamlessly into compact devices
- Low Power Consumption: Perfect for battery‑powered or energy‑harvesting systems
- Wide Temperature Range: –20 °C to +70 °C operation (optionally ruggedized)
Customization Services
- Interface Options: Standard I²C; SPI or parallel available on request
- FPC Tailoring: Custom lengths, pin‑outs, and connector types
- Protective Coatings: Anti‑glare, anti‑scratch, or hardened glass
- Module Integration: Touch panel bonding and companion driver boards
Applications
- Wearables & Smart Bands
- IoT Sensor Displays
- Handheld Instruments
- Medical & Health Monitors
- Portable Consumer Electronics
Why Choose JicTech?
- Industry Expertise Since 2003: Proven track record in display innovation.
- Global Quality Standards: ISO9001, ISO14001, IATF16949 certified production.
- Comprehensive OEM/ODM: From concept to mass production, including driver electronics.
- Dedicated Support: Sample code, datasheets, and responsive technical assistance.
Power your designs with JicTech’s 3.12‑Inch OLED Display Module—where precision, performance, and reliability converge.
