Description

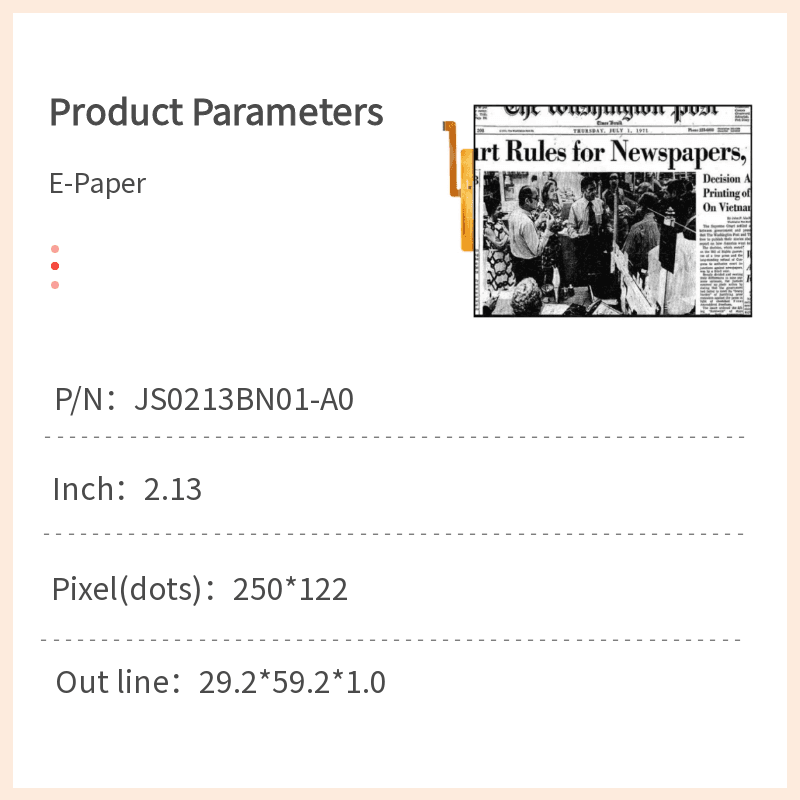

JS0213BN01-A0: 2.13 Inch Tri-Color E-Paper Display
JicTech 2.13 inch three-color E-Paper Display Module (Model JS0213BN01-A0) combines high resolution (250×122 pixels, 131 dpi) with ultra-low power bi-stable operation. Based on a-Si TFT active matrix technology, this reflective electrophoretic display supports black, white, and red inks for enhanced information density. Ideal for battery-powered e-readers, smartwatches, industrial indicators, and electronic shelf labels.
Revolutionize compact device interfaces with JicTech 2.13 inch tri-color E-Paper module. Featuring black, white, and red electrophoretic technology, this ultra-low power display delivers exceptional readability at 131 DPI resolution. Ideal for portable electronics requiring eye-friendly performance and extended battery life.
Key Features & Technical Advantages
- Tri-Color Performance: Sharp black/white/red rendering for enhanced visual communication
- Ultra-Low Power Architecture: Near-zero consumption in sleep mode (<3μA)
- High-Resolution Clarity: 250×122 pixel density (131 DPI) for crisp text and graphics
- Bi-Stable Operation: Maintains images without continuous power
- Compact Form Factor: Space-efficient 29.2×59.2×1.0mm design
- Industrial Robustness: Anti-glare surface with wide temperature tolerance
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Size | 2.13-inch (Diagonal) |
| Resolution | 250 × 122 Pixels (131 DPI) |
| Active Area | 23.705 × 48.55 mm |
| Outline Dimensions | 29.2 × 59.2 × 1.0 mm |
| Weight | 3.29 g |
| Color Palette | Black, White, Red |
| Interface | SPI (Serial Peripheral Interface) |
| Operating Voltage (VCI) | 2.2V – 3.7V |
| Deep Sleep Current | < 3 μA |
| Contrast Ratio | >20:1 |
| Refresh Time | 22 seconds (max) |
| Viewing Angle | 180° |
| Surface Treatment | Anti-Glare Coating |
Reliability Validation & Environmental Tests
Certified for demanding applications through comprehensive testing:
| Test | Condition | Duration | Compliance |
|---|---|---|---|
| Temperature Cycling | -20°C ↔ +60°C | 100 cycles | IEC 60068-2-14 |
| High-Temp Operation | +40°C, 70% RH | 240 hrs | Industrial Standard |
| Humidity Stress | +50°C, 80% RH | 240 hrs | IEC 60068-2-30 |
| Mechanical Vibration | 1.15Grms, 1-200Hz | 3 axes | ISTA Procedure |
| Drop Resistance | 97cm height | 10 impacts | ISTA 3A |
| Ghosting Performance | ΔE00 < 2 (CIEDE2000) | Full transition | Optical Standard |

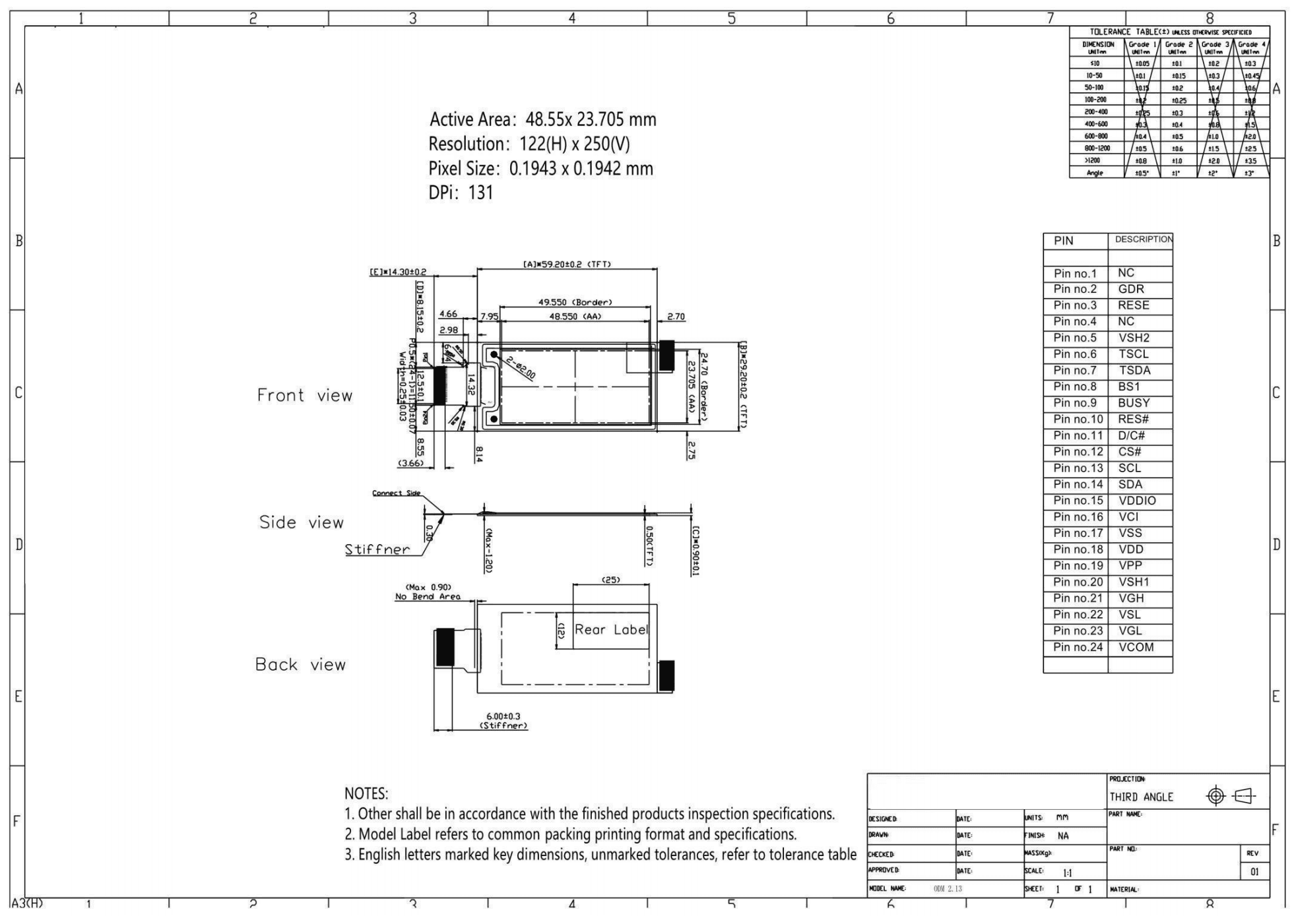

Mechanical Specifications
| Item | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Glass Width | 59.0 | 59.2 | 59.4 | mm |
| Glass Height | 29.0 | 29.2 | 29.4 | mm |
| Thickness | 0.9 | 1.0 | 1.1 | mm |
| Weight | – | 3.29 | – | g |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temp | TST | –20 | +60 | °C |
| Storage Humidity | HST | 40 | 70 | %RH |
| Operating Temp | TOP | 0 | +40 | °C |
| Operating Humidity | HOP | 40 | 70 | %RH |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage | VCI, VDDIO | 2.2 | 3.0 | 3.7 | V |
| Input High | VIH | 0.8×VCI | – | – | V |
| Input Low | VIL | – | – | 0.2×VCI | V |
| Deep Sleep Current | Idslp | – | 3 | – | μA |
| Sleep Mode Current | Islp | – | 20 | – | μA |
| Image Update Time | – | – | 22 | – | sec |
Optical Characteristics
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Contrast Ratio | – | 20:1 | – | – |
| White L* (CIE1931) | 65 | – | – | – |
| Red a* | 37 | – | – | – |
| Reflectance (White) | – | 37 | – | % |
Optimal Application Scenarios
Wearable Technology
Smartwatch displays and fitness trackers with multi-day battery life
Industrial Monitoring
Sensor readouts, equipment status indicators, and maintenance trackers
Retail & Logistics
Compact electronic shelf labels and inventory tags
Medical Devices
Portable diagnostic equipment and medication reminders
IoT Endpoints
Smart home controls and environmental monitors
Integration Resources
- SPI Protocol Guide: Download Interface Documentation
- Compliance Reports: RoHS 3 Certification
- View More Products: E paper Display Module
Quality Assurance
- 100% optical validation for color uniformity and contrast ratio
- Moisture-sealed packaging with desiccant
- ESD-protected manufacturing process (IEC 61000-4-2)
- UV-resistant Spectra™ Red 2.0 pigment technology
For volume pricing, custom FPC or waveform development, please contact our team:
- Email: jictech@jicdisplay.com
- Phone: +86 13826566194
Shenzhen JicTech Lcd Co., Ltd.— Trusted globally for industrial-grade displays.
