Description

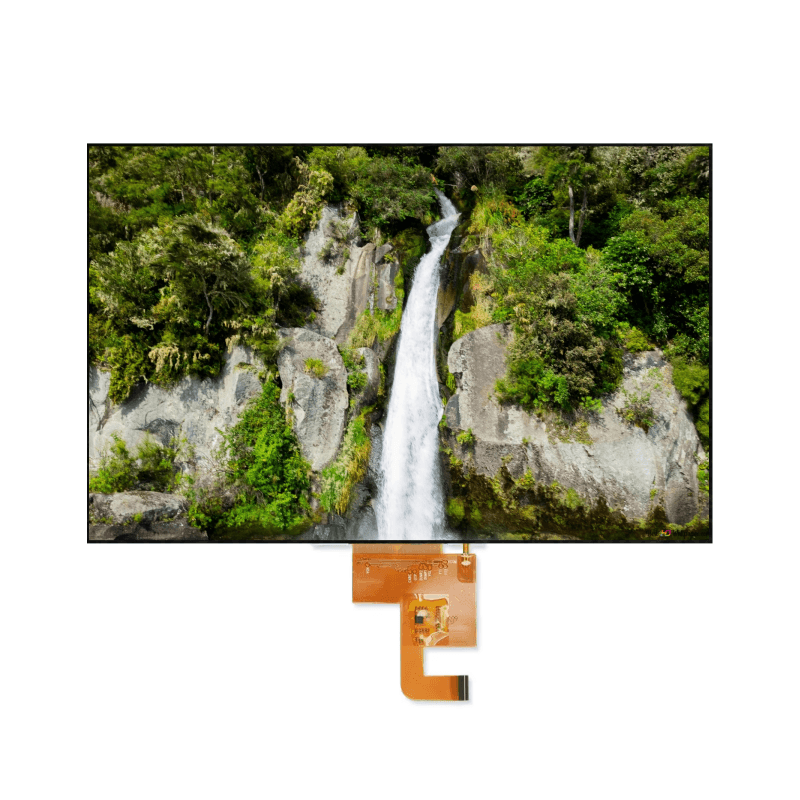

15.6‑Inch TFT LCD Module 1920*1080 High – Clarity Display Touch‑Enabled FHD
Model: RH156I8BHC‑1A
Product Overview
Boost your industrial, medical, or consumer electronics with JicTech’s 15.6‑inch Full HD Touchscreen LCD Module. Featuring a slim 5.9 mm profile, native 1920 × 1080 resolution, and integrated Projected Capacitive Touch (CTP) via the ILI2511 controller, this panel delivers razor‑sharp visuals and responsive touch interactivity for modern embedded systems, smart displays, and portable devices.
Key Features & Technical Advantages
| Feature | Specification | Engineering Benefit |
|---|---|---|
| Resolution | 1920×1080 (Full HD) | Crystal-clear imaging for critical visuals |
| Touch Technology | 10-point PCAP (ILI2511) | Glove-compatible, rain-resistant operation |
| Thickness | 5.9mm | Fits space-constrained embedded systems |
| Color Performance | 262K colors, NTSC 72% | Accurate medical imaging/color-critical apps |
| Interface | eDP 1.2 | Single-cable video + touch data transfer |
| Operating Temp | -20°C to +60°C | Reliable in factory/outdoor environments |
| Backlight Integration | Built-in LED driver | Reduces system thickness by 30% |

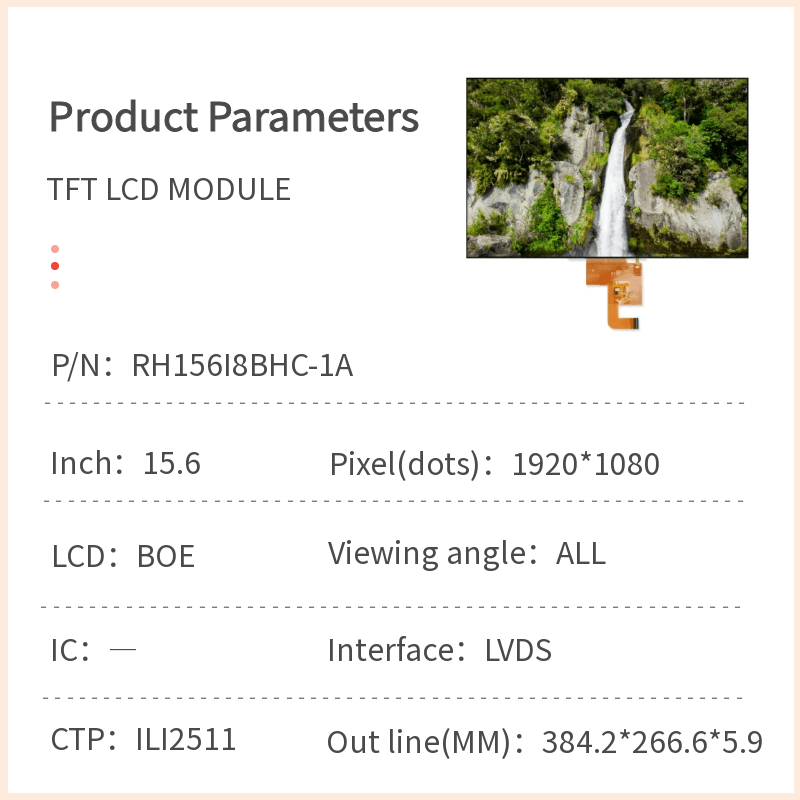

Technical Specifications
| Parameter | Specification |
|---|---|
| Active Area | 344.16 × 192.59 mm |
| Resolution | 1920 × 1080 (FHD) |
| Pixel Pitch | 0.17925 × 0.17925 mm |
| Subpixel Arrangement | RGB Vertical Stripe |
| Display Colors | 262,144 (18‑bit) |
| Display Mode | Normally Black TFT |
| Interface | eDP 1.2 |
| Touch Controller | ILI2511 (10‑point multi‑touch) |
| Outline Dimensions | 384.2 × 266.6 × 5.9 mm |
| Surface Treatment | Anti‑glare (AG) |
| Backlight | Single LED bar, lower edge |
| Power Consumption | ≤1.0 W (panel + LED driver, mosaic pattern) |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –30 °C to +70 °C |
| Weight | TBD |
Reliability & Quality Assurance
JicTech modules undergo rigorous stress testing to ensure dependable operation in harsh environments:
High/Low Temperature Storage: 60 °C / –20 °C for 240 hrs
High Temp. & Humidity Operation: 50 °C, 80 %RH for 240 hrs
Thermal Shock: –20 °C ↔ 60 °C, 100 cycles
Vibration & Shock: 1.5 G (10–500 Hz), 220 G half‑sine
ESD Protection: 15 kV Air, 8 kV Contact
Industry-Specific Applications
Industrial Automation
HMI Control Panels: 10-touch gesture control for multi-operator stations
Portable Test Equipment: 5.9mm slimness enables handheld designs
Medical Technology
Surgical Monitors: Anti-glare surface for OR lighting conditions
Diagnostic Devices: eDP noise immunity prevents image interference
Transportation & Kiosks
EV Dashboard Displays: -30°C cold start capability
Self-Service Terminals: 7H hardness scratch-resistant glass
Consumer Tech & IoT
Smart Appliances: 300,000+ touch cycle lifespan
Rugged Tablets: 220G shock resistance for field use
Technical Specifications
| Parameter | Detail |
|---|---|
| Active Area | 344.16×192.59mm |
| Pixel Pitch | 0.17925×0.17925mm |
| Subpixel Arrangement | RGB Vertical Stripe |
| Surface Treatment | Anti-Glare (3H) |
| Power Consumption | ≤1.0W (mosaic pattern) |
| Storage Temperature | -30°C to +70°C |
Integration Support
Free Engineering Resources:
3D STEP model for enclosure design
Linux/Android touch driver package
EMI compliance test reports (IEC 60601-1-2)
Customization Options:
Optical Bonding (eliminates air gap)
Sunlight Readable 1000-nit upgrade
[Download Design Kit] | [Request Customization Quote]
Solutions to Common Design Challenges
Challenge: “Touch responsiveness fails in wet conditions”
Solution: Hydrophobic coating option maintains >90% accuracy @ 80% RH
Challenge: “EMI interferes with medical sensors”
Solution: Shielded version passes IEC 60601-1-2 Class B emissions
Verified Customer Endorsement
*”Integrated 200+ RH156I8BHC-1A modules into our EV charging stations. Withstood -25°C winter testing without touch lag.”*
― Lead Engineer, Nordic EV Systems
[View Automotive Integration Case Study]
Why Choose JicTech?
Advanced Display Expertise: Over 20 years delivering reliable TFT and touch solutions.
One‑Stop OEM/ODM Partner: From custom electronics to turnkey modules.
Global Quality Standards: ISO9001, ISO14001, IATF16949 certified manufacturing.
Dedicated Support: Comprehensive datasheets, sample code, and rapid technical assistance.
Elevate your next project with JicTech’s 15.6‑inch FHD Touchscreen LCD Module—where performance, reliability, and seamless interactivity converge.
