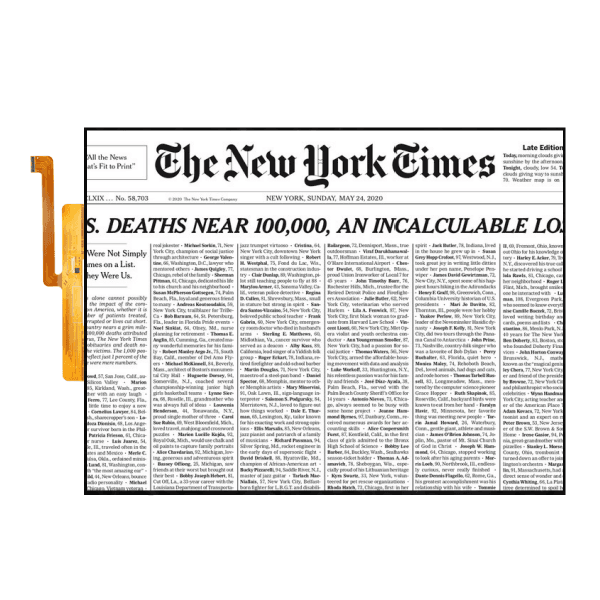

JicTech 10.2 Inch E Paper Display Module — JS1020HN01-A0
The JS1020HN01-A0 is a high-resolution Active Matrix Electrophoretic Display (AMEPD)
designed for low-power, high-readability applications. With a 10.2 Inch E Paper Display active area and a 960 × 640
pixel matrix, this module delivers paper-like contrast and excellent viewing comfort for commercial and
consumer devices.
Why choose JS1020HN01-A0
- Large-format 10.2″ panel with 960×640 resolution for crisp text and detailed UI graphics.
- Bi-stable reflective technology — no power required to hold an image, ideal for battery-powered products.
- Integrated driver functions (oscillator, DC-DC, SRAM, LUT, VCOM) to simplify system integration.
- Robust environmental testing and shipping-grade packaging standards for reliable field use.
- Flexible SPI MCU interface (3-wire / 4-wire selectable) for straightforward integration with common microcontrollers.
Recommended applications
- Large-format e-readers and digital textbooks
- Smart home control panels and room signage
- Electronic shelf labels and retail signage with extended battery life
- Industrial HMIs and handheld devices requiring long standby times
- Portable reference displays and kiosks

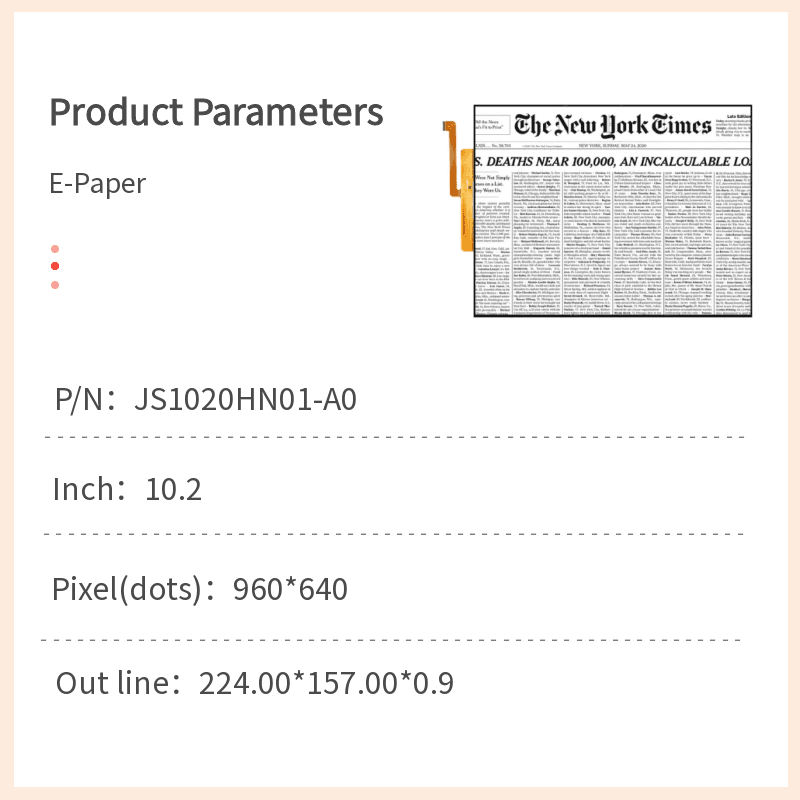

Mechanical specifications
| Parameter | Specification |
|---|---|
| Model | JS1020HN01-A0 |
| Diagonal | 10.2 inch |
| Resolution | 960 (H) × 640 (V) pixels |
| Active area | 215.52 × 143.68 mm |
| Outline dimension | 224.00 × 157.00 × 0.90 mm (without masking film) |
| Pixel pitch | 0.2245 × 0.2245 mm |
| Pixel configuration | Rectangle |
| Panel weight | TBD |
Electrical & interface summary
| Parameter | Typical / Notes |
|---|---|
| Operating voltage (VCI) | 2.5 – 3.7 V (typical 3.3 V) |
| Logic I/O thresholds | VIH ≈ 0.8×VDDIO, VIL ≈ 0.2×VDDIO |
| Module operating current (update) | Typ. up to 15 mA (depends on waveform & update) |
| Deep sleep current | Approx. 7 µA (VCI = 3.3 V) |
| Interfaces | 3-wire / 4-wire SPI (BS1 pin selectable), I²C for external temp sensor |
| SPI timing | Write up to 20 MHz, Read up to 2.5 MHz (typical) |
| On-chip resources | Oscillator, booster/DC-DC, SRAM, LUT (OTP), temperature sensor |
Optical characteristics
| Parameter | Typical |
|---|---|
| White reflectance | ~30–35 % (measurement dependent) |
| Contrast ratio (CR) | Typical ≥ 10:1 (measured at center, indoor conditions) |
| White state (L*) | ~63–65 |
| Black state (L*) | ~13–14 |
| Viewing characteristics | Ultra wide viewing angle; anti-glare surface |
Reliability & environmental testing
The JS1020HN01-A0 has been validated against industry-standard environmental and mechanical tests to ensure
durability in commercial deployments. Representative tests include:
| Test | Condition |
|---|---|
| High temperature operation | +40 °C, RH 35 %, 240 h |
| Low temperature operation | 0 °C, 240 h |
| High temperature storage | +50 °C, RH 35 %, 240 h |
| Low temperature storage | -25 °C, 240 h |
| High temp / high humidity operation | +40 °C, RH 90 %, 168 h |
| Temperature cycling | -25 °C ↔ +60 °C, 50 cycles |
| Package vibration & drop | Vibration 1.04 G; drop tests on packed shipments |
| UV exposure | 765 W/m² for 168 h at 40 °C (white pattern) |
| ESD | IEC-based levels; module-level verification recommended |
Handling and integration guidance
- Avoid bending, twisting and local pressure on the active area; handle glass carefully.
- Do not connect/disconnect FPC while module is powered. Observe ESD precautions.
- Use recommended power-on/off sequence and provided SPI timing to protect charge pumps and ensure stable operation.
- Avoid prolonged exposure to direct sunlight, corrosive gases or very high humidity when unprotected.
- For 3-color modules keep the panel white and face-up during long storage and refresh periodically.
Integration resources
Ordering & support
For samples, custom FPC options, controller recommendations or volume quoting, contact JicTech:
- Email: [email protected]
- Company: Shenzhen JicTech LCD Co., Ltd.
Rugged Reliability
Validated through comprehensive environmental testing:
- 500+ temperature cycles (-25°C to 60°C)
- 90% RH humidity operation for 168+ hours
- 100cm concrete drop resistance (MIL-STD certified)
- UV exposure resistance (765W/m² @ 40°C)
Notes: Specifications above are module-level. Confirm the latest datasheet, controller waveform and mechanical
tolerances before final design-in. Product lifetime and warranty terms are specified at order confirmation.
