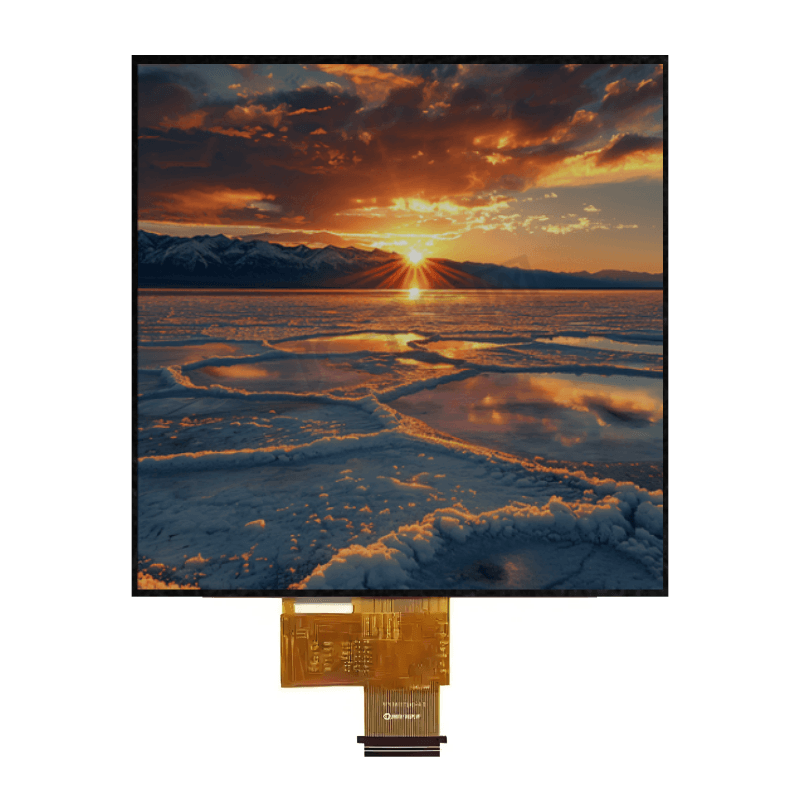

JicTech 1.5 inch OLED Display Module
Model: JS150-2828KSWKG01-H25 | SH1107 Driver IC | 128×128 Resolution
JicTech 1.5-inch OLED Display Module delivers high-contrast monochrome graphics in an ultra-compact package (33.9 × 37.3 × 1.44 mm). Driven by the SH1107 controller and featuring a 1/128 drive duty, this passive-matrix OLED supports 8-bit parallel, SPI, and I²C interfaces. Its wide operating temperature, low-power sleep mode, and exceptional reliability make it ideal for wearables, IoT controllers, industrial HMIs, and medical instruments.
Engineered for reliability in demanding environments, JicTech’s 1.5-inch OLED display delivers crisp monochrome visuals with ultra-low power consumption. Featuring a square aspect ratio and multiple interface options, this display module is ideal for industrial instruments, medical devices, and portable electronics.
Key Advantages
- High contrast ratio (>10,000:1) for superior readability
- Square aspect ratio ideal for data visualization
- Ultra-low sleep current (0.5μA typical)
- Multiple interface options (SPI, I2C, Parallel)
- Extended temperature range (-40°C to +70°C)
- Long operational lifetime (10,000+ hours)
Optical Excellence
- Brightness: 80-100 cd/m²
- CIE White Coordinates: (0.29, 0.31)
- Monochrome (White) display
- Passive Matrix technology
- 1/128 drive duty cycle
- Wide viewing angle
Reliability Features
- Rigorous environmental testing
- Thermal shock resistant
- High temperature/humidity operation
- MIL-STD-105E quality control
- ESD protection circuitry
- Optimized power sequencing
Technical Specifications
| Display Characteristics | |
|---|---|
| Display Size | 1.5 inch |
| Resolution | 128 × 128 pixels |
| Display Type | Passive Matrix OLED |
| Display Color | Monochrome (White) |

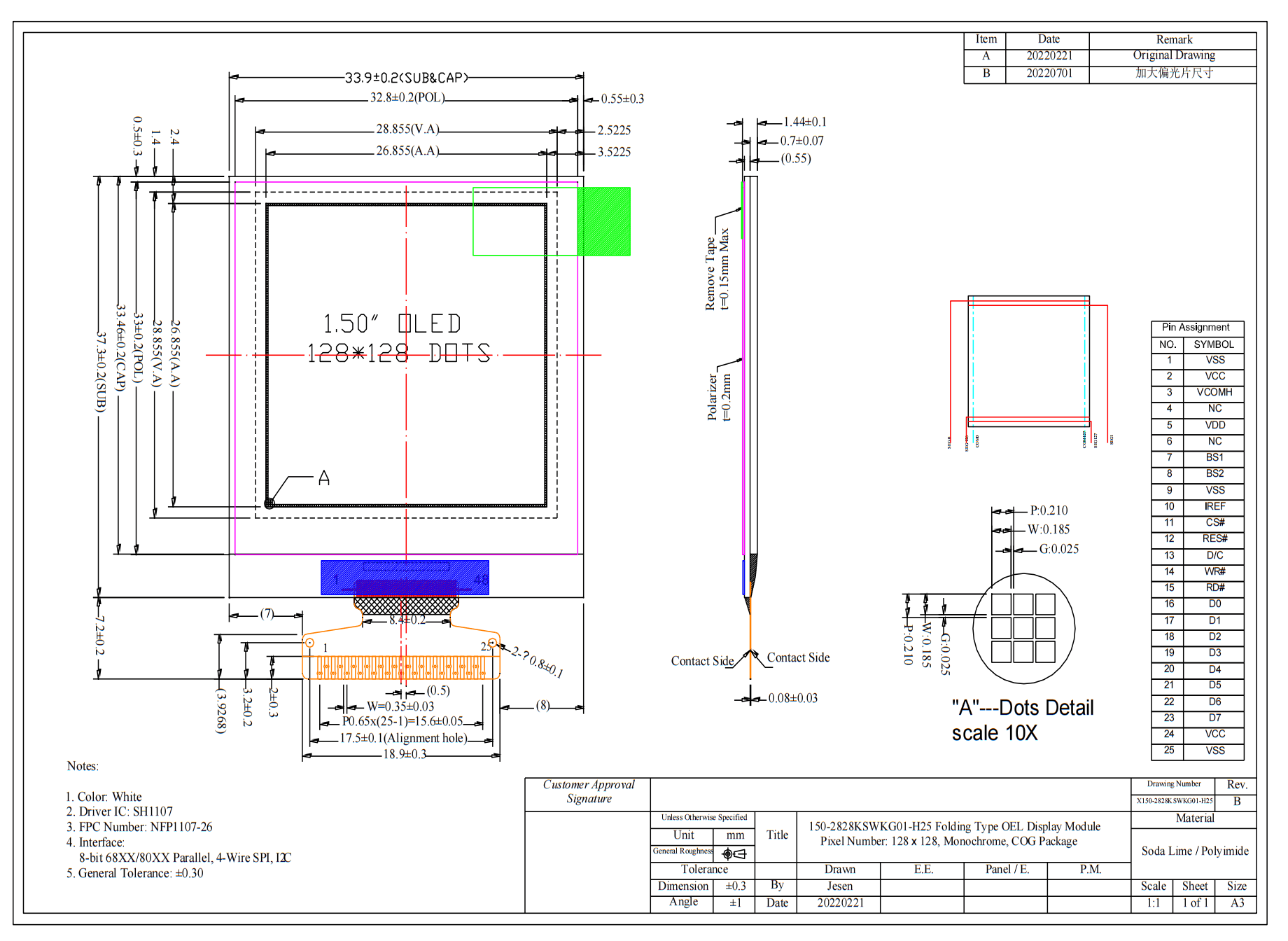

| Active Area | 26.855 × 26.855 mm |
| Panel Size | 33.9 × 37.3 × 1.44 mm |
| Pixel Pitch | 0.21 × 0.21 mm |
| Pixel Size | 0.185 × 0.185 mm |
| Drive Duty | 1/128 |
| Electrical Characteristics | |
|---|---|
| Logic Supply Voltage (VDD) | 1.65V – 3.5V (Typ. 2.8V) |
| Panel Supply Voltage (VCC) | 11.5V – 12.5V (Typ. 12.0V) |
| Operating Current (VCC) | 25mA (Typ.), 32mA (Max.) |
| Sleep Mode Current (VCC) | 0.5μA (Typ.), 5μA (Max.) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Reliability & Environmental Tests
| Test Item | Condition |
|---|---|
| High Temperature Operation | +70 °C, 240 hrs |
| Low Temperature Operation | –40 °C, 240 hrs |
| High Temperature Storage | +85 °C, 240 hrs |
| Low Temperature Storage | –40 °C, 240 hrs |
| High Temp. & Humidity | 60 °C, 90 % RH, 120 hrs |
| Thermal Shock | –40 °C ↔ +85 °C, 24 cycles |
| ESD (Operation) | Air ±8 kV, Contact ±4 kV |
Interface Options
Interface Selection
| BS1 | BS2 | Interface Mode |
|---|---|---|
| 0 | 1 | 8-bit 68XX Parallel |
| 1 | 1 | 8-bit 80XX Parallel |
| 0 | 0 | 4-wire SPI |
| 1 | 0 | I2C |
Critical Control Pins
| Pin | Symbol | Function |
|---|---|---|
| 7,8 | BS1, BS2 | Interface mode selection |
| 11 | CS# | Chip select |
| 12 | RES# | Reset signal |
| 13 | D/C | Data/Command control |
| 10 | IREF | Brightness adjustment |
Ideal Applications
Industrial Control Systems
Machine interfaces, sensor readouts, and control panels where wide-temperature operation (-40°C to 70°C) and reliability are critical requirements.
Portable Medical Devices
Patient monitoring equipment and portable diagnostic tools benefiting from high contrast ratio (>10,000:1) and square aspect ratio.
IoT and Wearable Devices
Smart home controllers, wearable tech, and environmental monitors where low power consumption (0.5μA sleep current) is essential for battery longevity.
Automotive Accessories
Aftermarket dashboard displays and accessory interfaces leveraging OLED’s fast response time and wide viewing angle.
Why Choose JicTech OLED Modules?
Proven Reliability
Rigorous testing ensures performance in extreme conditions with 10,000+ hour operational lifetime.
Power Efficiency
Ultra-low sleep current (0.5μA) extends battery life in portable applications.
Interface Flexibility
Support for SPI, I2C, and parallel interfaces ensures compatibility with any microcontroller.
Wide Temperature Range
Operates flawlessly from -40°C to +70°C for demanding industrial environments.
