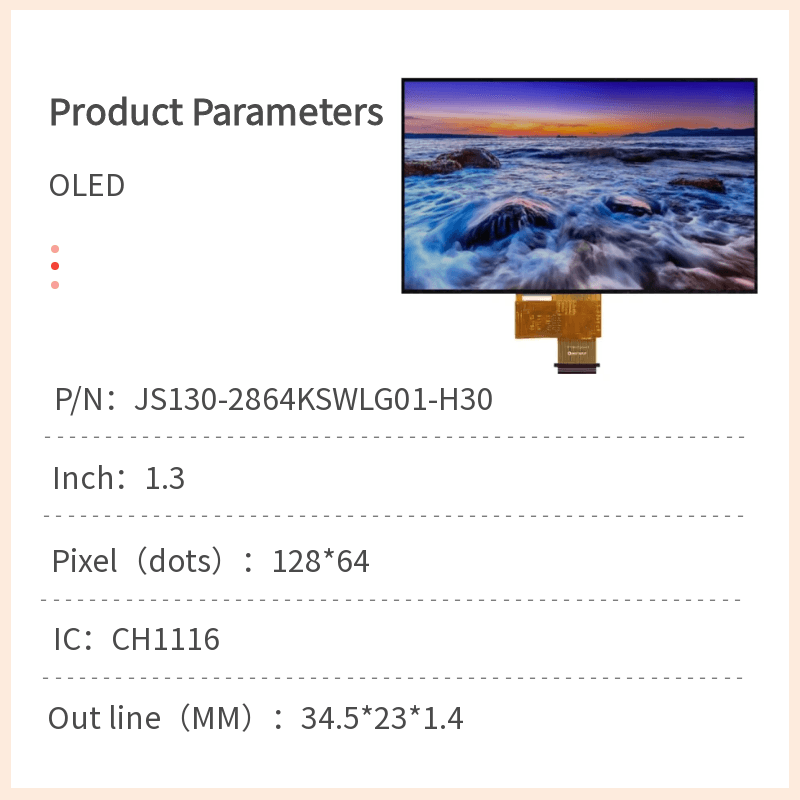

JicTech 1.3 Inch OLED Display Module – Model JS130-2864KSWLG01-H30
Engineered for compact applications requiring high visual performance, JicTech 1.3-inch OLED display delivers crisp monochrome visuals with ultra-low power consumption. Featuring the CH1116 driver IC and multiple power options, this display module is ideal for portable medical devices, industrial sensors, and IoT applications where space and efficiency are critical.
Key Features
- High contrast ratio (2000:1) for superior readability in various lighting conditions
- Ultra-low sleep current (2μA typical) extends battery life in portable applications
- Dual power options: External supply or integrated DC/DC converter
- Multiple interface protocols supported (SPI, I2C, 68XX/80XX Parallel)
- Extended operating temperature range (-40°C to +85°C)
- Long operational lifetime (50,000+ hours at reduced brightness)
Technical Specifications

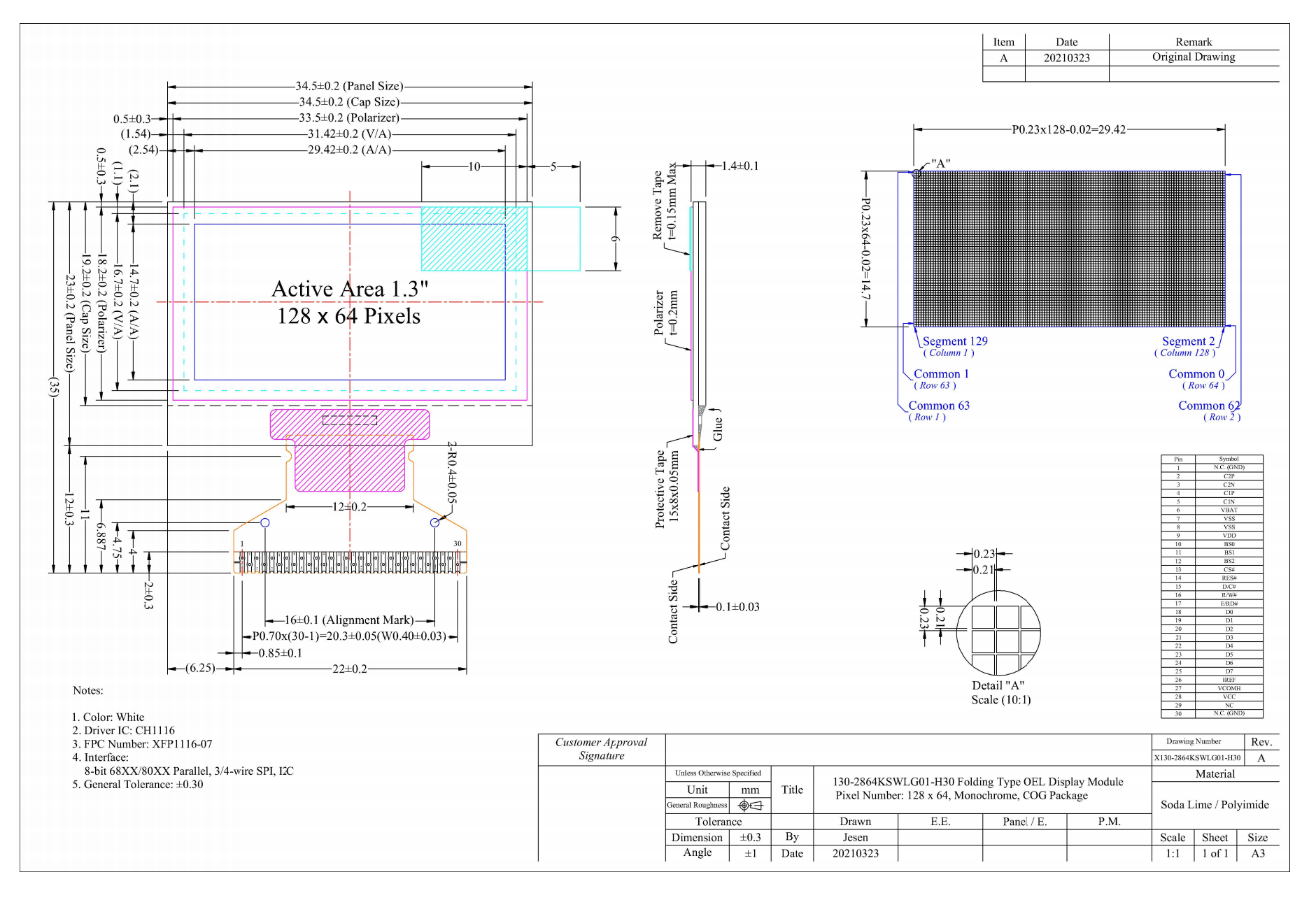

Display & Mechanical Properties
| Parameter | Value | Unit |
|---|---|---|
| Display Size | 1.3 inch | – |
| Resolution | 128 × 64 | pixels |
| Display Type | Passive Matrix OLED | – |
| Display Color | Monochrome (White) | – |
| Active Area | 29.42 × 14.70 | mm |
| Panel Size | 34.50 × 23.00 × 1.40 | mm |
| Pixel Pitch | 0.23 × 0.23 | mm |
| Pixel Size | 0.21 × 0.21 | mm |
| Weight | 2.18 | g |
Electrical Characteristics
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Logic Supply Voltage (VDD) | 1.65 | 2.8 | 3.5 | V |
| Display Supply Voltage (VCC) | 0 | 14.0 | – | V |
| Operating Current (VDD) | – | 180 | 300 | µA |
| Operating Current (VCC) | – | 25 | 32 | mA |
| Sleep Mode Current (VDD) | – | 0.1 | 5 | µA |
| Sleep Mode Current (VCC) | – | 0.5 | 5 | µA |
| Brightness (Lbr) | 80 | 100 | – | cd/m² |
| Contrast Ratio | – | >10,000:1 | – | – |
| Viewing Angle | – | 160 | – | ° |
Optical Performance
| Characteristic | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Brightness (External Supply) | 120 | – | – | cd/m² |
| Brightness (Internal DC/DC) | 90 | 110 | – | cd/m² |
| Contrast Ratio | – | 2000:1 | – | – |
| Viewing Angle | – | Wide | – | degrees |
Interface Options
| BS0 | BS1 | BS2 | Interface Mode |
|---|---|---|---|
| 0 | 1 | 0 | I2C |
| 1 | 0 | 0 | 3-wire SPI |
| 0 | 0 | 0 | 4-wire SPI |
| 0 | 0 | 1 | 8-bit 68XX Parallel |
| 0 | 1 | – | 8-bit 80XX Parallel |
Reliability and Quality Assurance
JicTech OLED modules undergo rigorous testing to ensure performance in demanding conditions:
| Test Item | Condition |
|---|---|
| High Temp. Operation | +70 °C, 240 hrs |
| Low Temp. Operation | –40 °C, 240 hrs |
| High Temp. Storage | +85 °C, 240 hrs |
| Low Temp. Storage | –40 °C, 240 hrs |
| High Temp. & Humidity | 60 °C, 90 % RH, 120 hrs |
| Thermal Shock | –40 °C ↔ +85 °C, 24 cycles |
| ESD (Operation) | Air ±8 kV, Contact ±4 kV |
Quality Control Standards
- MIL-STD-105E Level II inspection protocol
- AQL 0.65% for major defects (display functionality)
- AQL 1.0% for minor defects (cosmetic)
- ESD-protected inspection environment (23±5°C, 55±15% RH)
Ideal Applications
Portable Medical Devices
Glucose monitors, pulse oximeters, and portable diagnostic tools benefiting from high contrast ratio and compact dimensions.
Industrial Sensors
Equipment monitoring systems and sensor interfaces requiring wide-temperature operation (-40°C to 85°C).
IoT and Wearable Technology
Fitness trackers, smart watches, and environmental sensors where low power consumption (2μA sleep current) is essential.
Consumer Electronics
Portable audio players, smart home controllers, and accessory displays leveraging OLED’s fast response time.
Power Management
The display offers flexible power configuration options:
Why Choose JicTech OLED Modules?
- Space-Optimized Design: Compact 34.5×23.0×1.4mm footprint ideal for miniaturized devices
- Extended Temperature Range: Verified operation from -40°C to +85°C
- Power Flexibility: Dual power options for design versatility
- Quality Manufacturing: ISO-certified production facilities with strict quality control
- Technical Support: Dedicated engineering assistance for integration challenges
Technical Resources
Download CH1116 Technical Manual for complete command references and electrical schematics.
